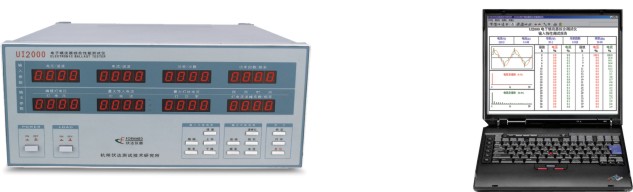

产品名称:UI2000电子镇流器综合性能测试仪|伏达UI2000|杭州伏达代理
产品型号:UI2000电子镇流器综合性能测试仪
生产厂商:杭州伏达Volnic
产品数量:不限
产品单价:电议

UI2000电子镇流器综合性能测试仪|伏达UI2000|杭州伏达代理



◆ 测量参数 Measure parameters:
◇ 输入:电压、电流、功率、功率因数、电网频率、相位角、谐波及0~39次各谐波分量
    Input: Vrms lrms W PF Hz phase angle total harmonic and 0~39th harmonic components
◇ 输出:灯电压、灯电流、灯丝电流、导入阴极电流、灯功率、波峰系数、振荡频率
    Output: Lamp voltage lamp current filament current guided cathodic current lamp power crest factor and oscillatory frequency
◇ 启动:启动过程灯电压、灯电流、灯丝电流、导入阴极电流变化曲线及参数,预热时间
    Startup: Startup lamp voltage lamp current filament current guided cathodic current curve and parameter preheating time
◇ 预热能量测试:预热能量及灯丝预热启动时间,电子镇流器启动后0~5秒内灯丝电压、灯丝电流、灯丝功率的变化曲线
    Pre-heat energy test: test pre-heat energy and filament pre-heat time test parameter changing curves of filament voltage
    filament current and filament  power from 0 to 5 seconds after startup
◆ 输入精度 Input accuracy: ±(0.1% reading+0.1% range+1 digit)
◆ 输出精度 Output accuracy: ±(1% reading+1% range+2 digit)
◆ 八窗口同时显示输入,输出各电参数,便于比较分析
    8 windows for disying input and output parameters simultaneously convenient for comparison and analysis
◆ 便携式,仪器本身可以完成打印,可方便地通过RS-232C接口与电脑连接,同时提供中、英文测试报告,便于国际交流
    Portable style; directly send data to printer for printing (no need computer) convenient to communicate with computer
    through RS-232C interface. Reports both in Chinese and English
◆ 满足国际及国内标准IEC60929、IEC60969、IEC61000-3-2、GB/T15144-2005、GB/T17263-1998荧光灯用交流电子镇流器性能要求
    Meets test requirements for electronic ballasts in international standards IEC60929 IEC60969 IEC61000-3-2
